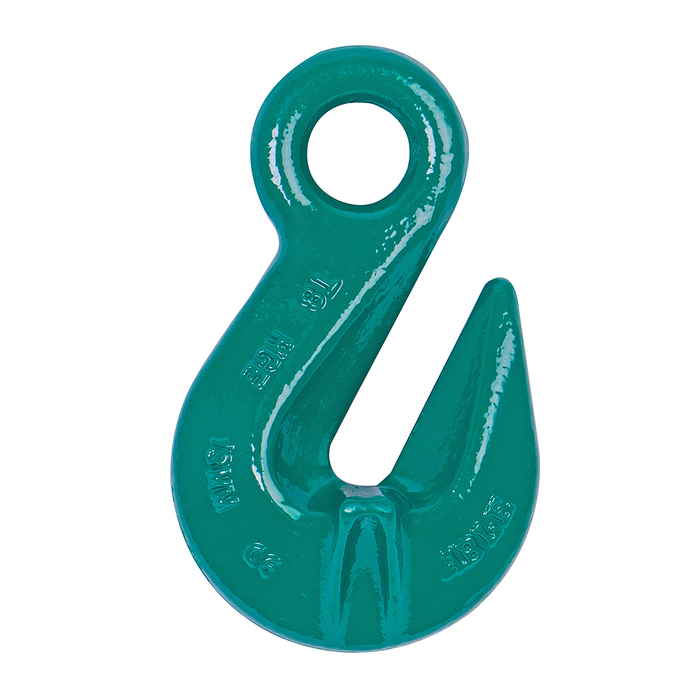

Grade 80 Eye Grab/Shortner Hook - ABLE

by Kanga Lifting
Price on Application
Enquire
  • No reduction in WLL when used as a shortening hook on cradle type with supporting wings
  • Applications: Shortening and reeving of chain slings
  • Conforms to AS 3776

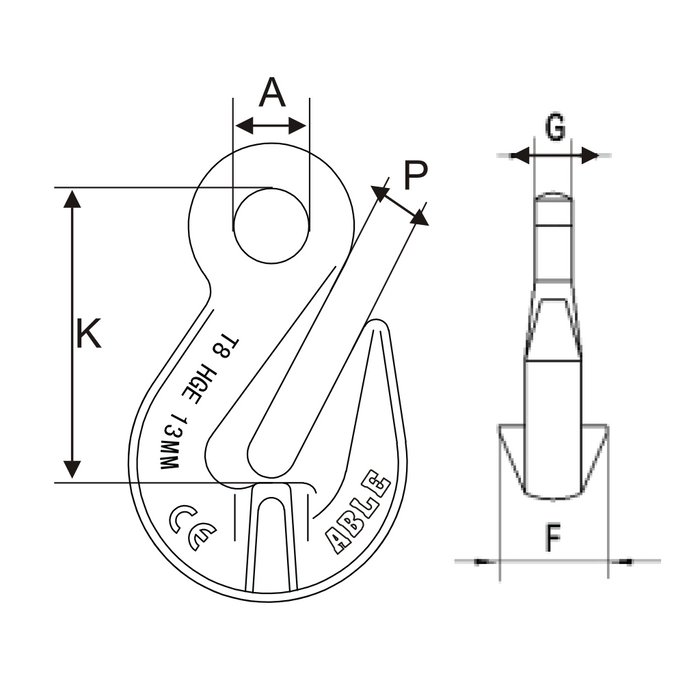

Code
Chain Size
(mm)
W.L.L
(Tonne)
P
(mm)
A
(mm)
K
(mm)
01HEG06 6 1.1 8 13 51
01HEG08 8 2 10 15 60
01HEG10 10 3.2 13 20 84
01HEG13 13 5.3 16 25 102
01HEG16 16 8 20 30 114
01HEG20 20 12.5 23 36 132
01HEG22 22 15 26 38 165
01HEG26 26 21.2 29 41 187
01HEG32 32 31.5 37 57 230
